[Kotlin] Recycler View Animation Using Custom Layout Manager

Before get started, be aware of that this post contains only about the 'custom layout manager' which means overrided LinearLayoutManager by programmers, not about a recycler view moving like a carousel. If you want to implement the recycler view, I refer to my other post explaining it: https://rccode.tistory.com/entry/Kotlin-Profile-Card-RecyclerView-With-PagerSnapHelper

[Kotlin] Carousel RecyclerView With PagerSnapHelper





  > Results

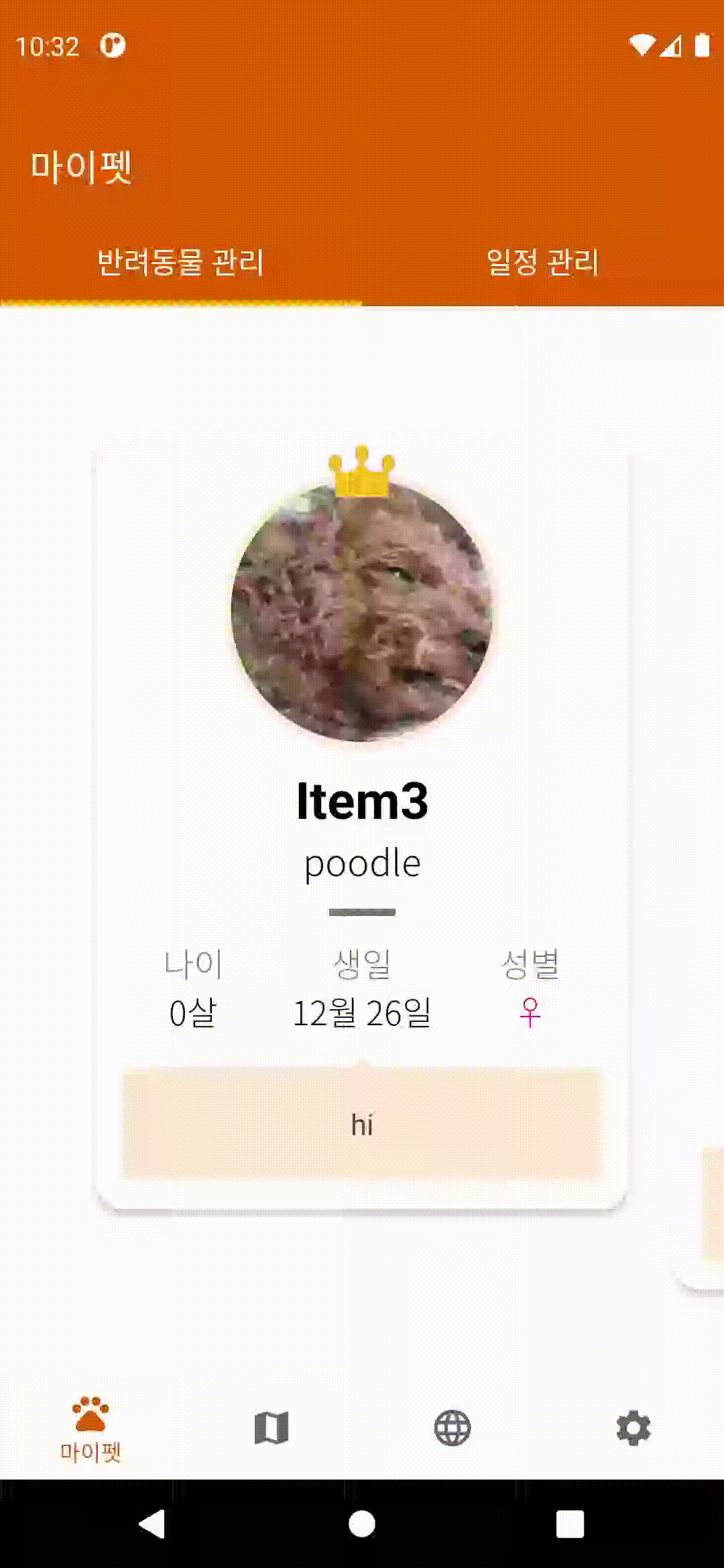

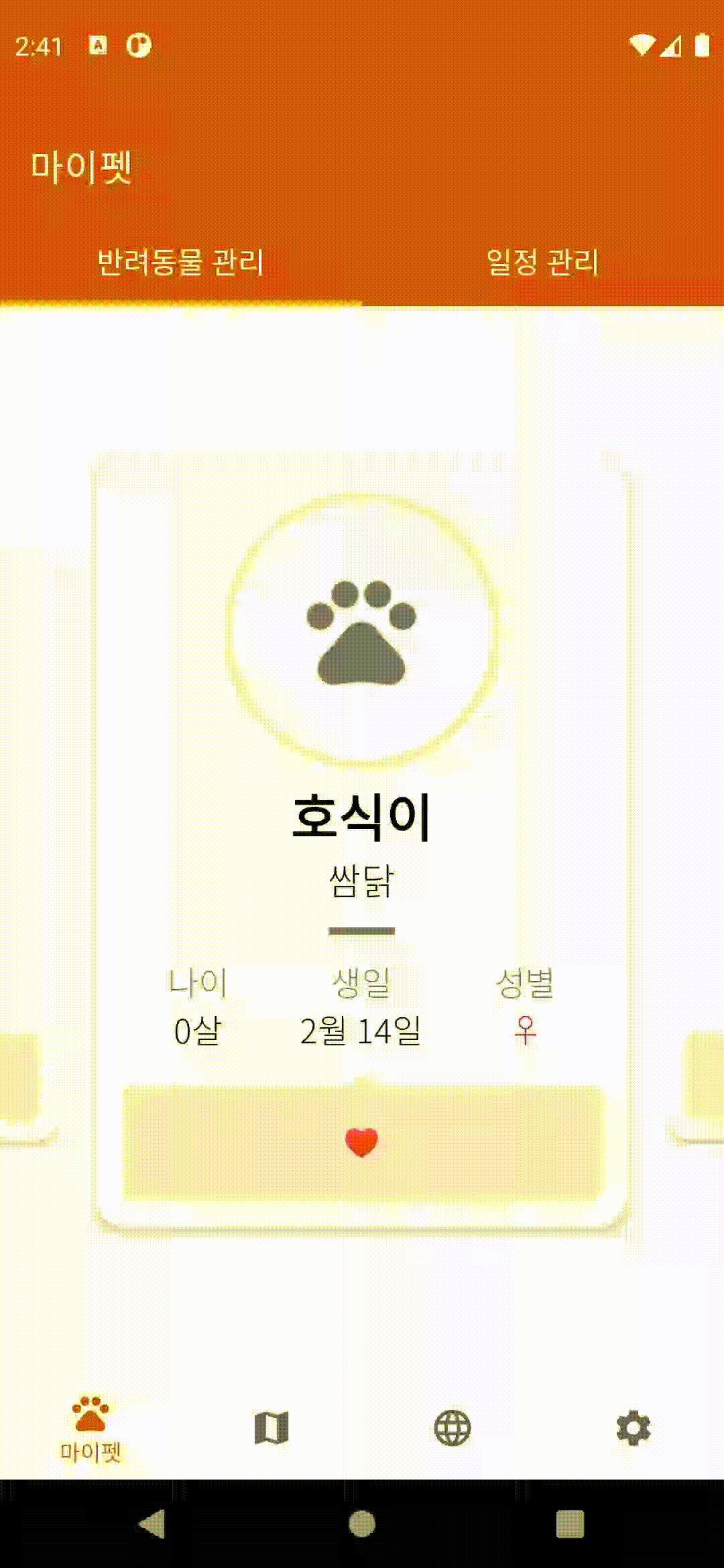

Let's see what we'll build. First there are 2 modes, 'Scale mode' and 'Y mode'. A scale mode means a scale of items changes when scrolling, and the last one means a y position of that does.



 > Create CustomLayoutManager which implements LinearLayoutManager

class CustomLayoutManager constructor(
    context: Context,
    snapHelper: SnapHelper,
    mode: Mode,
    minScale: Float,
    yOffset: Float
): LinearLayoutManager(context) {
    private val snapHelper = snapHelper

    /** Mode of an animation */
    private val mode = mode

    /** A limit of scale getting smaller(ex. 0.5f then items will be smaller by up to half) */
    private val minScale = minScale

    /** A degree to which y position changes */
    private val yOffset = yOffset

    override fun generateDefaultLayoutParams(): RecyclerView.LayoutParams {
        return RecyclerView.LayoutParams(
            RecyclerView.LayoutParams.WRAP_CONTENT,
            RecyclerView.LayoutParams.WRAP_CONTENT
        )
    }

    override fun onLayoutChildren(recycler: RecyclerView.Recycler?, state: RecyclerView.State?) {
        super.onLayoutChildren(recycler, state)

        if(state != null){
            layoutItems(state)

            if(mode == Mode.SCALE_MODE){
                for(i in 0 until itemCount) findViewByPosition(i)?.pivotY = (height/2).toFloat()
            }
        }
    }

    override fun scrollHorizontallyBy(
        dx: Int,
        recycler: RecyclerView.Recycler?,
        state: RecyclerView.State?
    ): Int {
        if(state != null){
            layoutItems(state)
        }

        return super.scrollHorizontallyBy(dx, recycler, state)
    }

    private fun layoutItems(state: RecyclerView.State) {
        if(state.isPreLayout) return

        val centerPos = getCenterPosition() ?: return
        for(pos in centerPos-1..centerPos+1){
            val item = findViewByPosition(pos) ?: continue
            if(item.tag == "DRAGGED") continue // A item longclicked for moving

            layoutItem(item)
        }
    }

    private fun getCenterPosition(): Int? {
        val centerView = snapHelper.findSnapView(this)
        return centerView?.let { getPosition(it) }
    }

    private fun layoutItem(item: View) {
        val itemCenterX = item.x + item.width/2

        when(mode){
            Mode.Y_MODE -> {
                item.y = computeY(itemCenterX)
            }
            Mode.SCALE_MODE -> {
                val scale = computeScale(itemCenterX)
                item.scaleX = scale
                item.scaleY = scale
                item.pivotX = computePivot(itemCenterX, item.width)
            }
        }
    }

    private fun computeY(itemCenterX: Float): Float {
        return if(itemCenterX < width/2) {
            min(1f, itemCenterX / (width/2)) * yOffset - yOffset
        }else{
            min(1f, (width - itemCenterX) / (width/2)) * yOffset - yOffset
        }
    }

    private fun computeScale(itemCenterX: Float): Float {
        return if(itemCenterX < width/2) {
            min(1f, itemCenterX / (width/2)) * (1 - minScale) + minScale
        }else{
            min(1f, (width - itemCenterX) / (width/2)) * (1 - minScale) + minScale
        }
    }

    private fun computePivot(itemCenterX: Float, itemWidth: Int): Float {
        return if(itemCenterX < width/2) itemWidth.toFloat() else 0f
    }


    enum class Mode {
        SCALE_MODE, Y_MODE
    }

    class Builder constructor(context: Context, snapHelper: SnapHelper){
        private val context = context
        private val snapHelper = snapHelper
        private var mode = Mode.Y_MODE
        private var minScale = 0.85f
        private var yOffset = -75f

        fun setMode(mode: Mode): Builder {
            this.mode = mode
            return this
        }

        fun setMinScale(minScale: Float): Builder {
            this.minScale = minScale
            return this
        }

        fun setYOffset(yOffset: Float): Builder {
            this.yOffset = yOffset
            return this
        }

        fun build(): CustomLayoutManager {
            return CustomLayoutManager(context, snapHelper, mode, minScale, yOffset)
        }
    }
}

Only one purpose of CustomLayoutManager is just to make items animated when scrolling, because I implemented a recycler view moving like a carousel by SnapHelper simply and 'longclick to move an item' before.

So, the point is simple. Just put a function 'layoutItems()' to onLayoutChildren() and scrollHorizontallyBy() which are override functions of LinearLayoutManager. First, onLayoutChildren() means literally a function called when items begin to be placed therefore we put layoutItems()──I'll descript it later──on it. And scrollHorizontallyBy() also does.

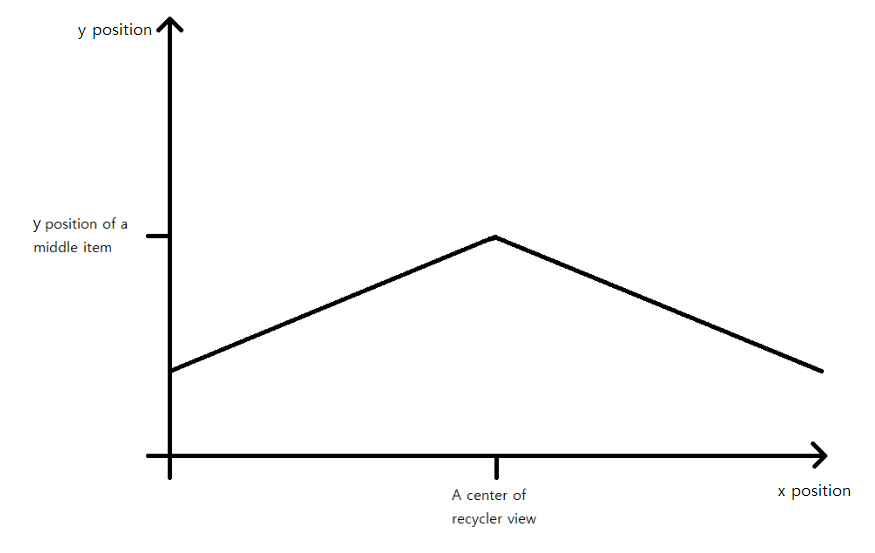

The last thing we have to do is to write the function layoutItems() which get the items moved. And, I told there are 2 modes but I'll talk about only 'Y mode' because implementations of those things are very similar. Let's define how items move on. Here is a graph describing it.





It's easy if you think of it as a trajectory left by an item moving from left to right. To compute y position by an item's central x position, I writed a function named computeY().

Now, I can get y position for x position of an item and make a function layoutItem() which layouts an item using computeY().

And finally I'll create layoutItems() function. There are only 3 items to consider because our recycler view shows 3 items in a screen. So, just call layoutItem() 3 times for items of n-1, n, n+1 index where n is a center item position that I can get using findSnapView() of SnapHelper. Implementation is now complete.



Use CustomLayoutManager like below:

// Initialize Adapter
binding.recyclerView.adapter = adapter

// Initialize PagerSnapHelper
val snapHelper = PagerSnapHelper()
snapHelper.attachToRecyclerView(binding.recyclerView)

// Initialize LayoutManager
layoutManager = CustomLayoutManager.Builder(requireContext(), snapHelper)
    .setMode(CustomLayoutManager.Mode.Y_MODE)
    // Or .setMode(CustomLayoutManager.Mode.SCALE_MODE)
    .setYOffset(0.8f)
    // Or .setMinScale(0.8f)
    .build()
layoutManager.orientation = LinearLayoutManager.HORIZONTAL
binding.myPetListRecyclerView.layoutManager = layoutManager
